Vintage Corner: Remo's precursor to the tuneable pad (Part III, sort of)

Here's the followup to my previous posts about the Remo tuneable practice pad.

First, Remo has a really cool little timeline at their web site that allows you to see major developments from the company's beginnings up till around 2007 (the timeline could use an update). From there, I was able to learn a few things that helped me to place the Remo pads in my collection on the historic timelime.

My plastic pad dates from the 1970s.
My two metal-rimmed tuneable pads date from the early to mid 1960s -- basically, until Remo began making tuneable pads with hard plastic rims.
But I have two pads that pre-date these pads, and I always wondered exactly where they came from.

These pads are not tuneable. They are constructed entirely of wood and use very early versions of Remo's synthetic drumhead material, for which patent paperwork was first filed in 1957 (the patent was granted in 1962; prior to this, most drummers had to live with calfskin heads and the vagaries of temperature and humidity that affected them. The synthetic drum head was a revelation as well as a revolution).
Beneath the head there appears to be what's left of some kind of foam (padding? muffling?); it has disintegrated over the decades, leaving a pad with an unsatisfying, hard "thud" sound.

Construction: each pad is made of wood, a built-in tilt and a sound chamber made of a thin piece of wood that looks like it was heated and bent into a curve. The framework holding the head is mounted on top of the curve, making for a resonant pad.

One of the things that can stymie research is a lack of serial numbers or other markers. These can be found on drums, but generally never appear on practice pads.

However, Remo's timeline gives us some help in determining exactly how old these pads are.

Remo's timeline goes as far as charting the course of its "Crown" logo design over the years, which in this case helped me more closely date these pads, the first produced under the Remo brand.

The larger pad's logo is worn, but still visible enough to determine a manufacture date.

Based on Remo's timeline info, that would date this pad to right around 1958-60, making it the first generation of practice pad offered by Remo.
Below, the logo from the smaller pad.

This means that the smaller pad is almost surely from 1961, since the new plastic-rimmed pad was rolled out in early 1962.
Not all companies provide such useful historic information to collectors, but Remo's timeline is especially helpful here. If you look closely at some points along the timeline, you can even click on links to patent information.

Like I said, playing these pads is NOT an exciting experience. The feel and sound are klunky.
It would be great to find a pad in as-new condition, with the foam in original shape, so I could get a better sense of how it sounded in the late 50s.

I hope you've found this exploration as interesting as I have. Happy drumming!

Vintage Corner: Remo tuneable practice pad, Part II

While researching this make and model of practice pad, I was also looking for an older version of the pad so I could get a better idea of its technical development.
I got lucky and obtained two within days of each other. They were made around the same time, in the early to mid 1960s (not long after its release by Remo).
The larger of the two pads measures 8” diameter and is constructed with a wood bed covered by a metal rim. Inside the wood bed is a foam muffler covered with a real, tunable Weather King drum head. Below all of this is a Masonite platform that is tilted slightly to give a simulation of the tilt most drummers used in the 1960s; before the advent of modern marching drum carriers, snare drums were carried on the march with a simple webbed cotton sling and a leg rest, which caused the drum to tilt. (This historic “tilt” is why snare drummers have been using what we call “traditional” grip for centuries. Only when drums could be carried perfectly horizontal could drummers begin utilizing “matched” grip comfortably. Oddly, while most drum lines carry drums nearly horizontally now, most use traditional grip, which can place extra strain on the left hand as it’s require to twist farther away to pull the stick from the drum head. But I digress.)

Photos below show the construction of the older, 8” Remo pad.





The other pad was a gift from a fellow drummer back East, who offered to give it to me if I paid for postage. It’s a smaller, 6” diameter pad, with a large Masonite platform designed to allow the snare to be placed on top of a 14” snare drum — a throwback to the rubber pads designed by Billy Gladstone over a decade earlier, which serve as a muffler for the drum while practicing. Since this pad is not especially low-volume, putting it on a drum won’t create quite the same muffled effect; but perhaps some drummers found this feature useful. The 14” Masonite disc was offered as an optional accessory, sold separately and screwing into the threaded hole originally designed to mount the smaller pad on a cymbal stand. My disc came with some damage incurred in shipping, so I fashioned a small “washer” from cardboard that allowed me to re-center the disc under the pad. The cardboard is just stiff enough without adding additional pressure to the fragile, 60-year-old Masonite disc.



Pay close attention to these photos, because there will be another part to this exploration that will show off what I believe was the precursor to the tuneable pad, you’ll be able to see the differences in design that may have led Remo to his idea of a tuneable pad. (No spoilers if you think you know where I’m going with this; I’m waiting to hear back from folks at Remo for verification.)

Below, you’ll find videos comparing the 1960s version of the pad with my plastic-topped pad from the 1970s. While the 1970s pad feels familiar, I find I actually like playing the 60s pad a little more. The sound and response feel "beefier" to me, and I don't think it's only about the size difference, but the materials used as well. My guess is that plastic got less expensive to manufacture with and that helped fuel the switch from a wood and metal base to an all-plastic one.




I think the Remo tuneable pad still has a place in the drum universe; For untold millions of drummers it has been the gateway to sa lifetime of drumming joy. It remains a well-built and very affordable choice for students, and the replaceable head makes it a longer-lasting choice too.
I hope you've enjoyed this little trip down the Remo drum pad "rabbit hole," and don't forget there will be a third chapter to this exploration.
Happy drumming!

Vintage Corner: Remo Tunable Practice Pad, PART I

In the fall of 1973, I moved with my family  to Concord, California. I was in fifth grade, and finally old enough to join the school band.
I went to the music teacher and asked about my options for learning an instrument.
After I explained that my parents could not afford to rent an instrument from the music store, and that whatever I chose would have to be on loan from the school district, the band director told me there weren’t many loaner instruments available.
It also had to be something I could get to and from school on my bicycle, because this was the era of latchkey kids and learning self-sufficiency. Ultimately, the only remaining choice that appealed to me was to learn to play the drum. A practice pad and sticks cost less than ten dollars, fit easily in my backpack and was quiet enough to practice anywhere. Plus, Karen Carpenter was a drummer long before she ever began singing, and she was one of my childhood idols. So that decided it.

I was presented with a copy of the Belwin Band Builder, a pair of 5A Ludwig drum sticks and a Remo tunable practice pad. With a 6-inch diameter plastic head, it looked like the top of a drum, and when you played it, it sort of sounded like a little drum; plus, the head was tunable and if you broke it you could buy replacements — the sort of thing that was sure to please my economy-minded mother.

I wore that first pad out by the time I got to high school, going through two replacement heads before I had cracked the plastic rim. I saved up my babysitting and paper route money and bought another, larger Remo pad in an 8-inch diameter size, which got me through high school. By then, I had gravitated to other styles of practice pad (including scrap rubber duct-taped to a wooden plank), and it was a long time before I bought another Remo tunable pad.

Fast forward to 2005. I was inspired to audition for a community wind ensemble, and needed to fill in my meager supply of drum sticks, mallets and other ephemera. I also needed a practice pad, so I went looking for something cheap — and found a “vintage” 6-inch Remo tunable pad in its original box, with the paperwork. It was being sold as a “collectible” and cost me almost twenty bucks. As it happened, that vintage drum pad purchase became the foundation of the practice pad collection I have today. I wound up hardly using it for regular practice because I had found other, more modern pads that I preferred. So it has mostly sat on a shelf in its little cardboard box.

The Remo tunable practice pad remains a stalwart, the pad you start a beginner with because it’s durable, still quite affordable — and easy to find used at garage sales for even less than I’d paid for my very first pad. The pad is still in production today and remains a best-seller, ideal for student drummers on a budget and anyone else looking for something that just works; though the current version is mostly plastic throughout and has no metal platform to provide a slight tilt, as my old pads had. There's even a version called Silent Stroke, with a mesh head for much quieter practice.

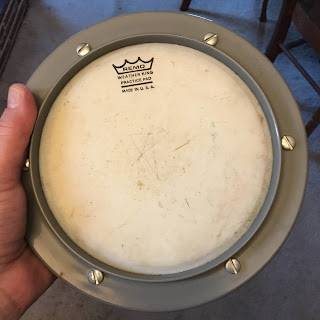

Here’s a few photos of the pad I bought used some fifteen years ago, and the paperwork that came with it. My pad dates from the mid to late 1970s, and utilizes both a “tilt” platform and a threaded hole for mounting on a cymbal stand.

A little instruction booklet that came with the pad

(Click on each page to get a larger photo)

A letter from Remo Belli and a quality pledge. Did these things once matter to customers?

When my interest in collecting pads and researching their history expanded,  I found photos of an older version of this pad, made with a metal rim.

My next quest would be to find an older version of the Remo tunable pad so I could make comparisons. Stay tuned for Part II of this exploration into a really cool corner of practice pad history, and happy drumming.

DIY practice pads (for kids and others on a budget)

Let's face it. Decent practice pads are not cheap. Even the RockJam pad, can run $20 or more with shipping. On top of that, a lot of stuff still ends up in the landfill when it doesn't have to, including scrap wood.

So after a great conversation about DIY practice pads for those on a tight budget, here's a simple way to make your own practice pad from repurposed wood planks (cut to size if necessary) and gum rubber.

Gum rubber, available in 12" x 24” sheets from Grainger Industrial on eBay. I use heavy-duty industrial scissors to trim to size. Make the rubber at least 1/2" to 1" smaller than the wood platform all the way around. Make sure both surface are clean and dry. (Depending on the wood surface, you may wish to sand it lightly for better adhesion.) If you want to make several drum pads, you might want to divide the 12x24" sheet into equal sections of 6" or 8" square so you can get more pads out of the gum rubber; it's not necessary to have a 12" practice pad if you're just working on rudiments or chopping out a part, and making a 6" square pad on an 8" or 9" square wood platform is a cost-effective way of getting more perfectly good pads from one sheet of rubber.

Working in a well-ventilated area (like an open garage), apply a thin line of super glue gel in a spiral, starting in the center and working outward in a spiral (each line about 1/4" apart from the next) to about 1/4" from the edge of the rubber, then carefully place the rubber panel glue-side down on the wood platform and weight down (with heavy books or other practice pads) and let dry overnight.

On the reverse side, you can use pieces of an old thin gaming mat -- glue them with the rubber side showing -- to give the pad a non-skid surface. Glue down and weight down the same way and let dry overnight.

1/4” thick is perfect for chopping rudiments. 1/8" thick may be preferable for those who play Kevlar-headed drums.

Here’s the very first one I made. It travels well and fits in my book bag; when I've toured as a singer-songwriter, this is the pad I've taken with me on the road.

Those with young drum lines may want to buy larger sheets of gum rubber and turn this into a DIY project for your drum line. Repurposed wood gets saved from the landfill and you can use it as a team-bonding activity. Just be sure to do this in a well-ventilated place (like a large garage with the door up, or a park bench).
